Single Core Cu/XLPE/PVC/AWA/PVC Armored Power Cable (0.6/1 kV)

Product Categories

  • Single Core Cu/XLPE/PVC/AWA/PVC Armored Power Cable (0.6/1 kV)

LV Power Cables

Single Core Cu/XLPE/PVC/AWA/PVC Armored Power Cable (0.6/1 kV)

This cable is used as a main power feeder in low-voltage distribution networks. It is suitable for installation in indoor and outdoor environments, including ducts and wet locations.
With aluminium wire armour providing enhanced mechanical protection, the cable is also suitable for direct burial applications where additional mechanical strength is required.

Contact UsWuxi Xinyu Cable Co., Ltd.
PREV：STA Multicore Cu/XLPE/PVC/STA/PVC Armored Power Cable (0.6/1 kV)
NEXT：CU/PVC/PVC 600/1000V Multi-Core PVC Insulated Unarmored Power Cable

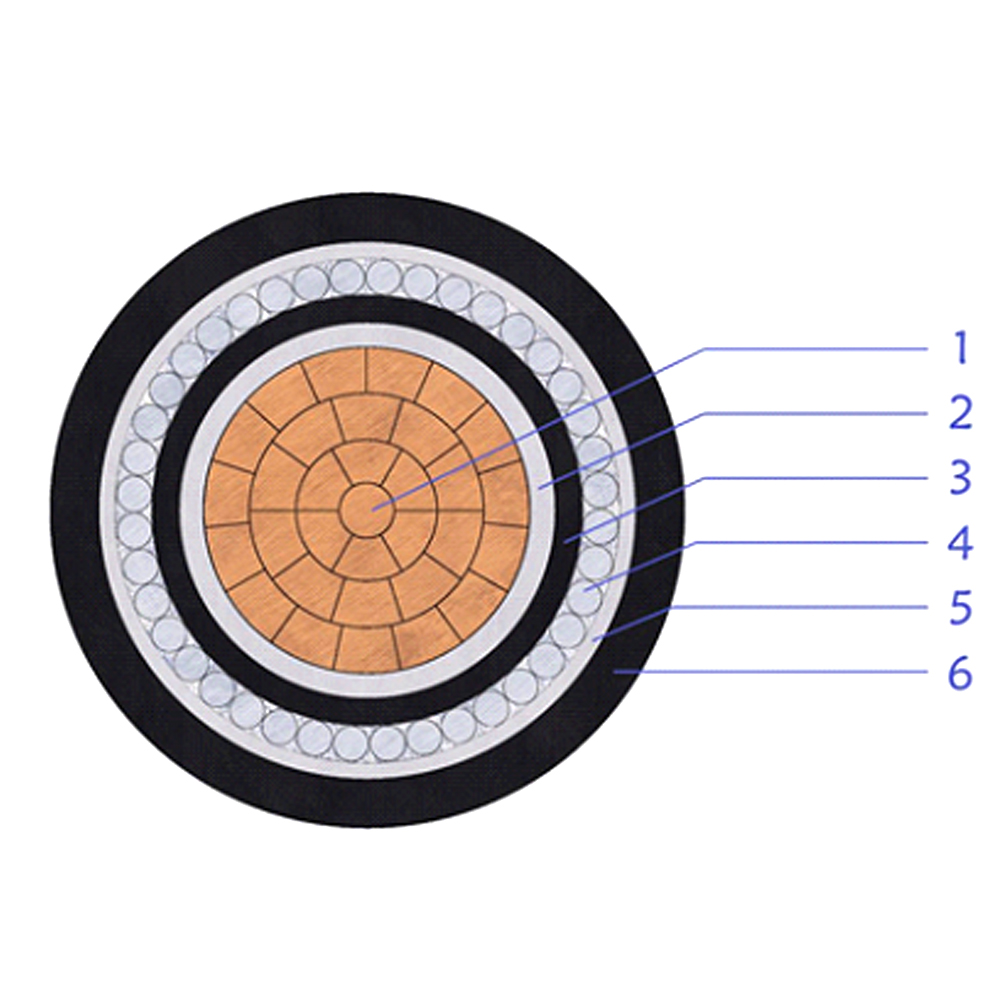

1. Conductor: Plain Annealed Copper, Class 2, Stranded Circular or Compacted
2. Insulation: Cross-linked Polyethylene (XLPE)
3. Inner Sheath: Polyvinyl Chloride (PVC) Compound
4. Armour: Aluminium Wire Armour (AWA)
5. Binder Tape: Non-hygroscopic material tape
6. Outer Sheath: Polyvinyl Chloride (PVC) Compound
7. Outer Sheath Colour: Black
