Multi-Core XLPE Insulated Copper Tape Screen Double Steel Tape Armored Power Cable

Product Categories

  • Multi-Core XLPE Insulated Copper Tape Screen Double Steel Tape Armored Power Cable

MV Power Cables

Multi-Core XLPE Insulated Copper Tape Screen Double Steel Tape Armored Power Cable

This multi-core power cable is designed with compacted copper conductors, XLPE insulation, and a copper tape metallic screen, combined with double steel tape armour for enhanced mechanical protection.
The double steel tape armoured structure improves resistance to external impact while maintaining stable electrical performance in medium voltage power transmission systems.
An assembled core structure with PP yarn fillers and PVC sheathing contributes to overall cable stability and structural integrity.

Contact UsWuxi Xinyu Cable Co., Ltd.
PREV：6/10kV Multi-Core XLPE Insulated Copper Tape Screen Steel Wire Armored Power Cable
NEXT：6/10(12)kV XLPE Insulated Copper Tape Screen Armored Medium Voltage Power Cable

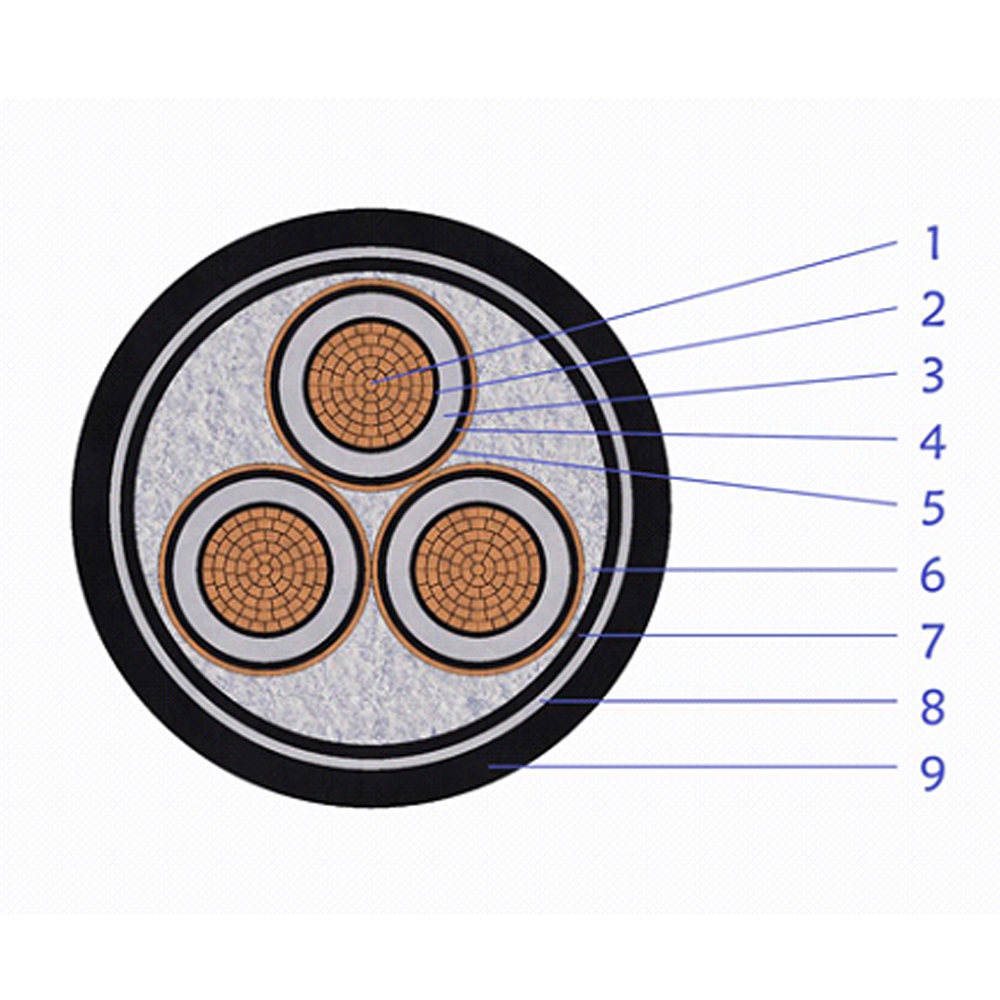

Conductor System
Plain annealed, Class 2 compacted copper conductors
Extruded semi-conductive conductor screen applied to each conductor
Insulation System
Cross-linked polyethylene (XLPE) insulation compound
Extruded semi-conductive insulation screen for electrical stress control
Screening Layer
Copper tape metallic screen
Core Assembly
Assembled multi-core structure with PP yarn fillers
Binder tape applied to maintain core formation
Sheathing and Armour
PVC inner sheath
Double steel tape armour (DSTA)
PVC outer sheath, Type ST2
