6/10kV Multi-Core XLPE Insulated Copper Tape Screen Steel Wire Armored Power Cable
This 6/10kV multi-core power cable is constructed with compacted copper conductors, XLPE insulation, and a copper tape metallic screen, combined with steel wire armour for mechanical reinforcement.
The cable structure supports stable electrical performance in medium voltage power distribution systems while providing increased resistance to external mechanical stress.
An assembled multi-core design with PP yarn fillers and PVC sheathing contributes to internal stability and overall cable integrity.

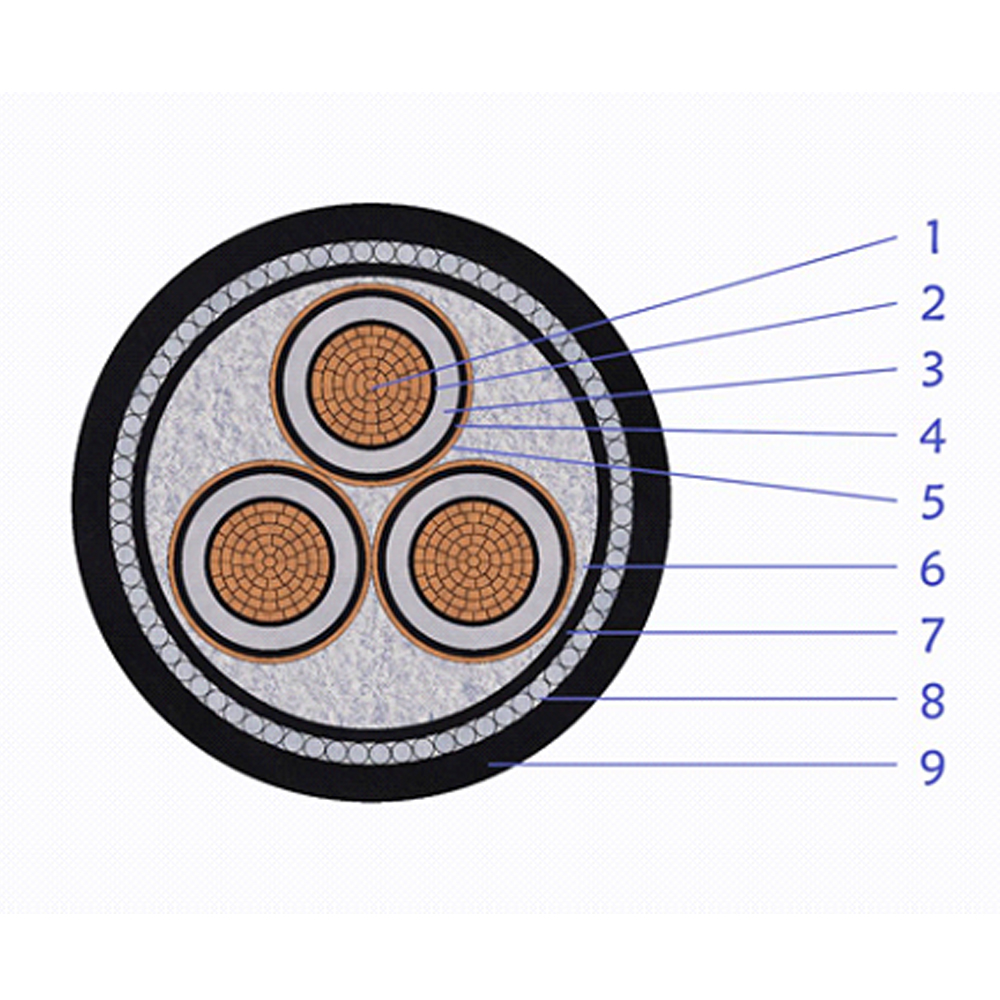

Conductor System
Plain annealed, Class 2 compacted copper conductors
Extruded semi-conductive conductor screen applied to each conductor
Insulation System
Cross-linked polyethylene (XLPE) insulation compound
Extruded semi-conductive insulation screen for controlled electrical stress distribution
Screening Layer
Copper tape metallic screen
Core Assembly
Assembled multi-core structure with PP yarn fillers
Binder tape applied to maintain core formation
Sheathing and Armour
PVC inner sheath
Steel wire armour (SWA)
PVC outer sheath, Type ST2
Voltage Rating
Operating voltage: 6/10 kV
Thermal Performance
Maximum continuous conductor operating temperature: 90℃
Maximum short-circuit conductor temperature: 250℃
Testing Requirement
Power frequency test voltage: 3.5 U₀
Available Cross Sections
Single Core: 16–800 mm²
Three Core: 16–400 mm²
Applicable Standards
Cable Design: IEC 60502-2
Conductor: IEC 60228
Key Structural Features
Multi-core construction with compacted copper conductors
Copper tape metallic screen supporting controlled electrical field performance
Steel wire armoured structure enhancing mechanical protection
PP yarn filler and binder tape improving core stability
PVC inner and outer sheath forming a complete cable protection system
