12/20kV Multi-Core XLPE Insulated Copper Tape Screen Double Steel Tape Armored Power Cable

This 12/20kV multi-core power cable adopts a compact multi-layer structure centered on copper conductors and XLPE insulation, with copper tape screening used to regulate the internal electrical field.
Double steel tape armour is applied around the cable core to reinforce structural integrity, supporting stable performance under medium voltage operating conditions.
The assembled core design, combined with PVC sheathing, enhances dimensional stability and maintains the overall cable form during installation and service.

PREV：12/20kV Multi-Core XLPE Insulated Copper Tape Screen Steel Wire Armored Power Cable
NEXT：12/20(24)kV XLPE Insulated Copper Tape Screen Armored Power Cable

Application
Construction
Electrical Characteristics
Reference Standards

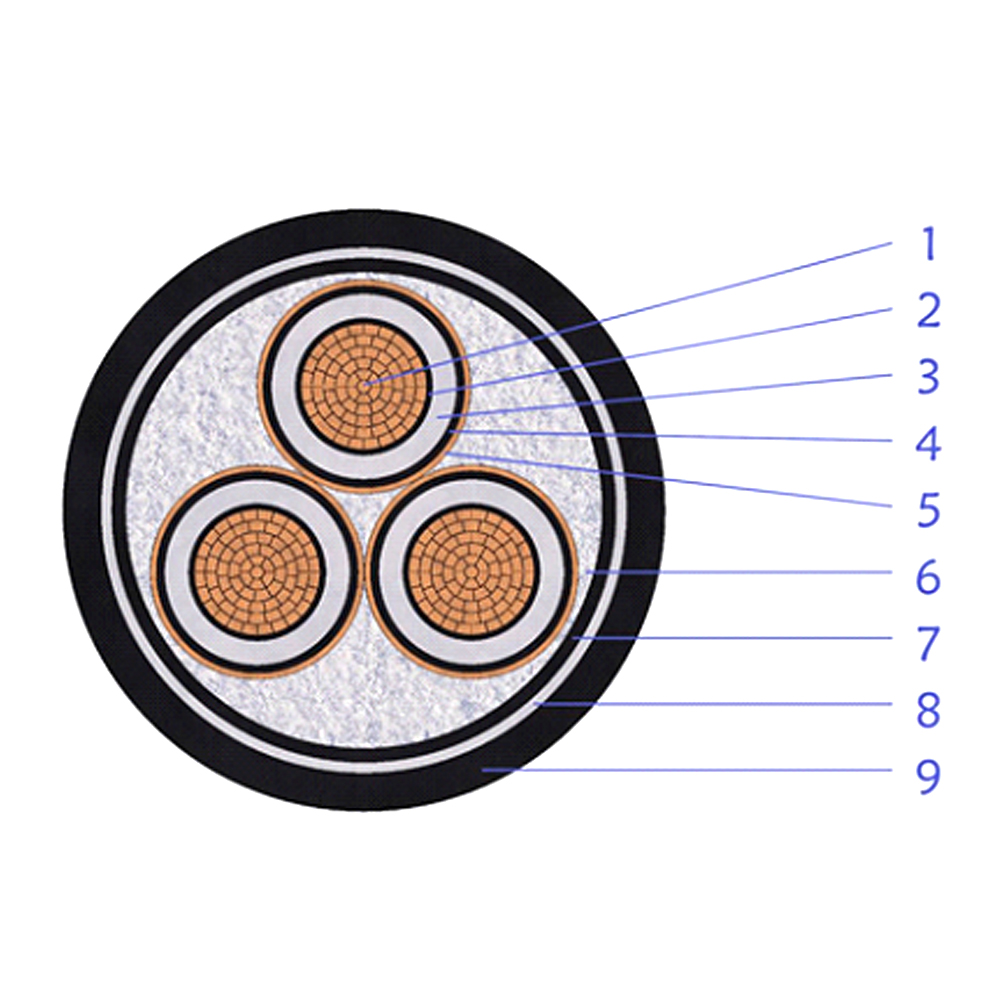

Conductive Path
Plain annealed, Class 2 compacted copper conductors
Semi-conductive conductor screen extruded over each conductor
Insulation Arrangement
XLPE insulation compound applied to individual cores
Extruded semi-conductive insulation screen for electrical field control
Screening Layer
Copper tape metallic screen positioned around the insulated cores
Core Formation
Multi-core assembly using PP yarn fillers
Binder tape applied to secure the core structure
Protective Structure
PVC inner sheath
Double steel tape armour (DSTA)
PVC outer sheath, Type ST2
Structural Highlights
Multi-core configuration supporting balanced medium voltage transmission
Copper tape screening assisting electrical stress distribution
Double steel tape armouring reinforcing overall cable structure
PP yarn filler system improving core stability
PVC sheath system forming a complete external protection layer
