12/20(24)kV XLPE Insulated Copper Tape Screen Armored Power Cable

Product Categories

  • 12/20(24)kV XLPE Insulated Copper Tape Screen Armored Power Cable

MV Power Cables

12/20(24)kV XLPE Insulated Copper Tape Screen Armored Power Cable

This 12/20(24)kV power cable is designed for higher medium voltage applications, utilizing compacted copper conductors and XLPE insulation to support stable electrical performance under increased voltage stress.
Copper tape screening is applied to manage the electrical field within the cable structure, while the armored design contributes to physical protection during installation and operation.
The cable is available in both single-core and multi-core constructions, allowing adaptation to different system layouts and installation requirements.

Contact UsWuxi Xinyu Cable Co., Ltd.
PREV：12/20kV Multi-Core XLPE Insulated Copper Tape Screen Double Steel Tape Armored Power Cable
NEXT：8.7/15kV Multi-Core XLPE Insulated Copper Tape Screen Steel Wire Armored Power Cable

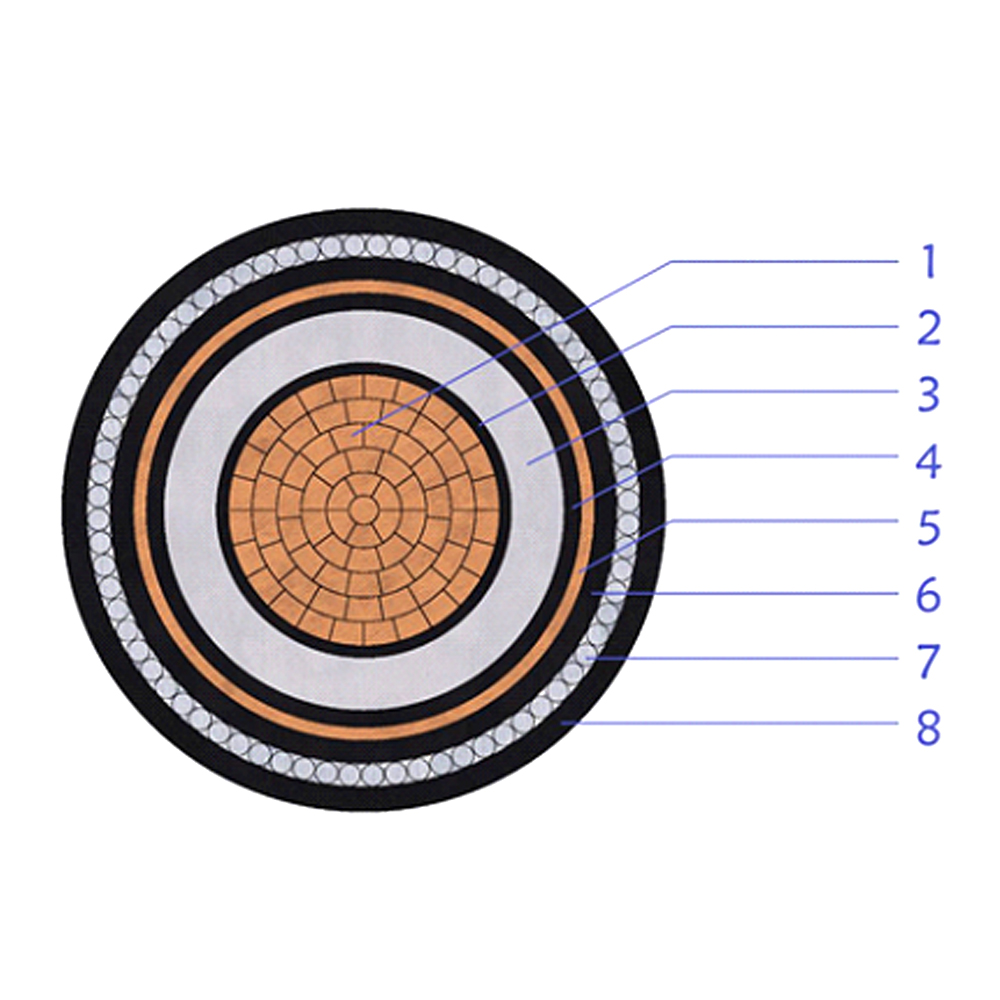

Current-Carrying Element
Plain annealed, Class 2 compacted copper conductor
Semi-conductive conductor screen extruded over the conductor surface
Insulation and Electrical Control
XLPE insulation compound applied around the conductor
Extruded semi-conductive insulation screen for electrical field stabilization
Metallic Screening Layer
Copper tape screen applied over the insulation system
Mechanical Protection System
PVC inner sheath
Armour configuration options:
Aluminium wire armour (AWA) for single-core construction
Steel wire armour (SWA) for multi-core construction
PVC outer sheath, Type ST2
Structural Highlights
XLPE insulation system supporting operation at 12/20(24)kV voltage level
Copper tape screening assisting in electrical stress management
Armored construction suitable for varied installation conditions
PVC sheath system forming a complete protective cable structure
Flexible configuration in single-core and multi-core designs
