6/10(12)kV XLPE Insulated Copper Tape Screen Armored Medium Voltage Power Cable

Name: 6/10(12)kV XLPE Insulated Copper Tape Screen Armored Medium Voltage Power Cable
Rating: 5 (99 reviews)

This 6/10(12)kV medium voltage power cable is manufactured with copper conductors, XLPE insulation, and a copper tape metallic screen to support stable power transmission at higher voltage levels.
The cable is available in both single-core and multi-core configurations, with armored construction designed to provide mechanical protection while maintaining consistent electrical performance.
PVC inner and outer sheaths form a complete protective structure, supporting long-term operation in medium voltage distribution systems.

PREV：Multi-Core XLPE Insulated Copper Tape Screen Double Steel Tape Armored Power Cable
NEXT：Multi-Core XLPE Insulated Copper Tape Screen Steel Wire Armored Power Cable

Application
Construction
Electrical Characteristics
Reference Standards

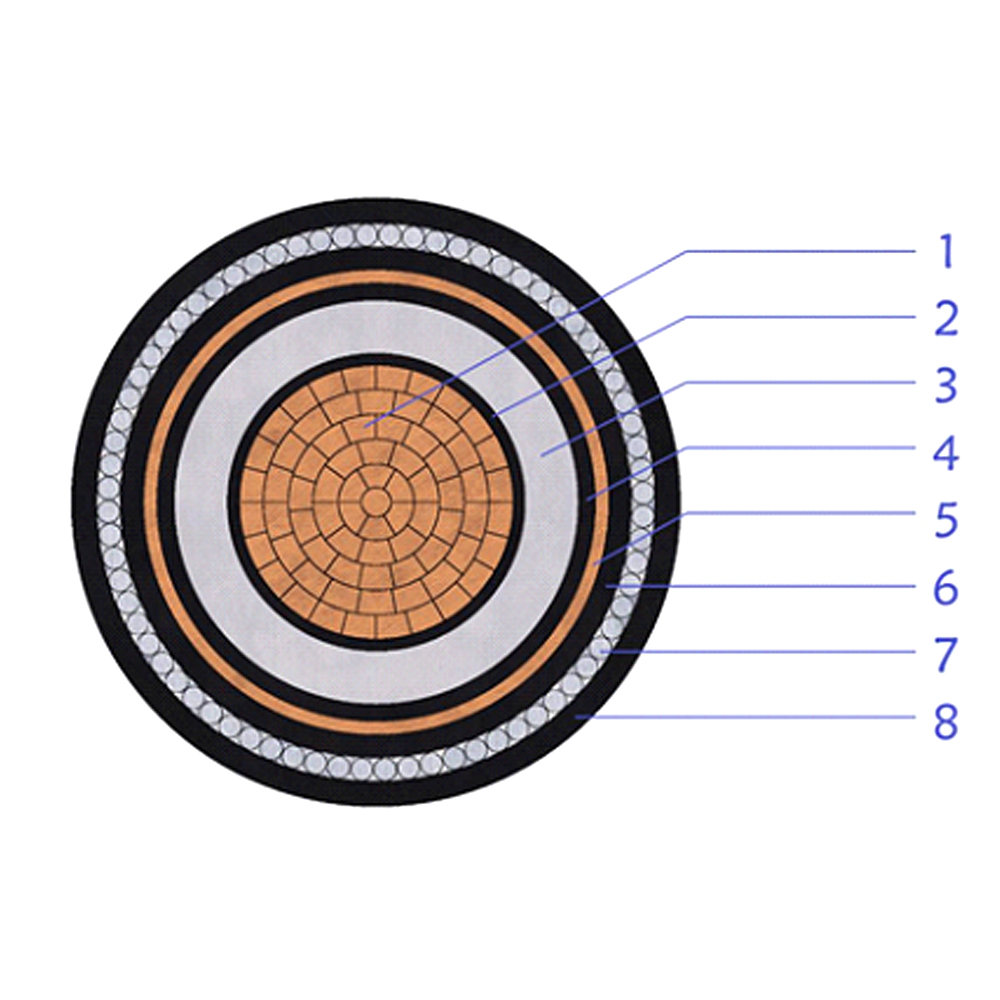

Conductor System
Plain annealed, Class 2 compacted copper conductor
Extruded semi-conductive conductor screen applied directly over the conductor
Insulation System
Cross-linked polyethylene (XLPE) insulation compound
Extruded semi-conductive insulation screen for controlled electrical stress distribution
Screening Layer
Copper tape metallic screen
Sheathing and Armour
PVC inner sheath
Armour options:
Aluminium wire armour (AWA) for single-core construction
Steel wire armour (SWA) for multi-core construction
PVC outer sheath, Type ST2
