8.7/15(17.5)kV XLPE Insulated Copper Tape Screen Armored Medium Voltage Power Cable

Product Categories

  • 8.7/15(17.5)kV XLPE Insulated Copper Tape Screen Armored Medium Voltage Power Cable

MV Power Cables

8.7/15(17.5)kV XLPE Insulated Copper Tape Screen Armored Medium Voltage Power Cable

This 8.7/15(17.5)kV medium voltage power cable is designed with compacted copper conductors, XLPE insulation, and a copper tape metallic screen to support reliable power transmission at higher medium voltage levels.
The armored construction provides mechanical protection while maintaining stable electrical performance in medium voltage distribution and transmission applications.
The cable is available in single-core and multi-core configurations, allowing flexibility for different installation and system design requirements.

Contact UsWuxi Xinyu Cable Co., Ltd.
PREV：8.7/15kV Multi-Core XLPE Insulated Copper Tape Screen Double Steel Tape Armored Power Cable
NEXT：6/10kV Multi-Core XLPE Insulated Copper Tape Screen Steel Wire Armored Power Cable

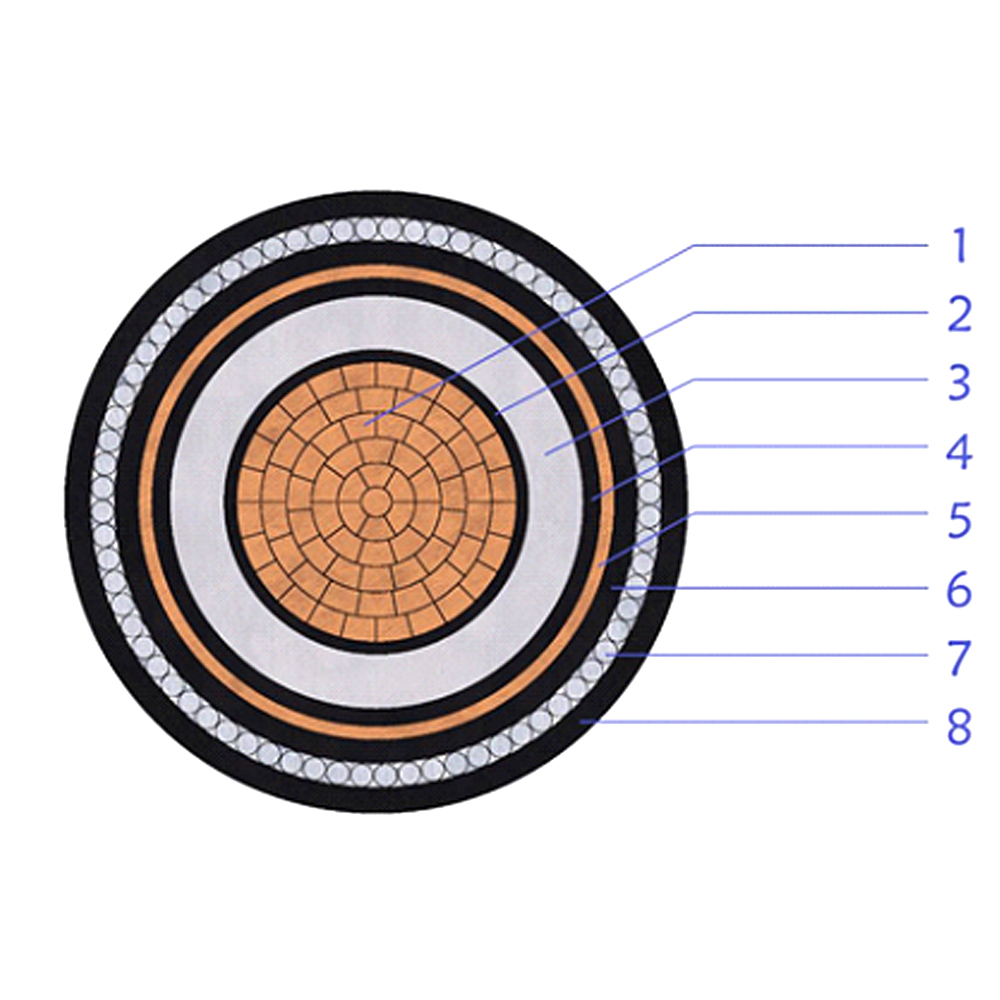

Conductor System
Plain annealed, Class 2 compacted copper conductor
Extruded semi-conductive conductor screen applied directly over the conductor
Insulation System
Cross-linked polyethylene (XLPE) insulation compound
Extruded semi-conductive insulation screen for controlled electrical stress distribution
Screening Layer
Copper tape metallic screen
Sheathing and Armour
PVC inner sheath
Armour options:
Aluminium wire armour (AWA) for single-core construction
Steel wire armour (SWA) for multi-core construction
PVC outer sheath, Type ST2
