3.6/6(7.2)kV Single-Core XLPE Insulated Copper Tape Screen Armored MV Power Cable

Product Categories

  • 3.6/6(7.2)kV Single-Core XLPE Insulated Copper Tape Screen Armored MV Power Cable

MV Power Cables

3.6/6(7.2)kV Single-Core XLPE Insulated Copper Tape Screen Armored MV Power Cable

This 3.6/6(7.2)kV medium voltage power cable is designed with a copper conductor, XLPE insulation, and copper tape metallic screening, providing stable electrical performance for medium voltage distribution systems.
The cable adopts an armored structure with a PVC inner and outer sheath, offering mechanical protection while maintaining consistent electrical characteristics in power transmission applications.

Contact UsWuxi Xinyu Cable Co., Ltd.
PREV：3.6/6(7.2)kV Multi-Core XLPE Insulated Copper Tape Screen Armored MV Power Cable (2–3 Cores)
NEXT：No next product

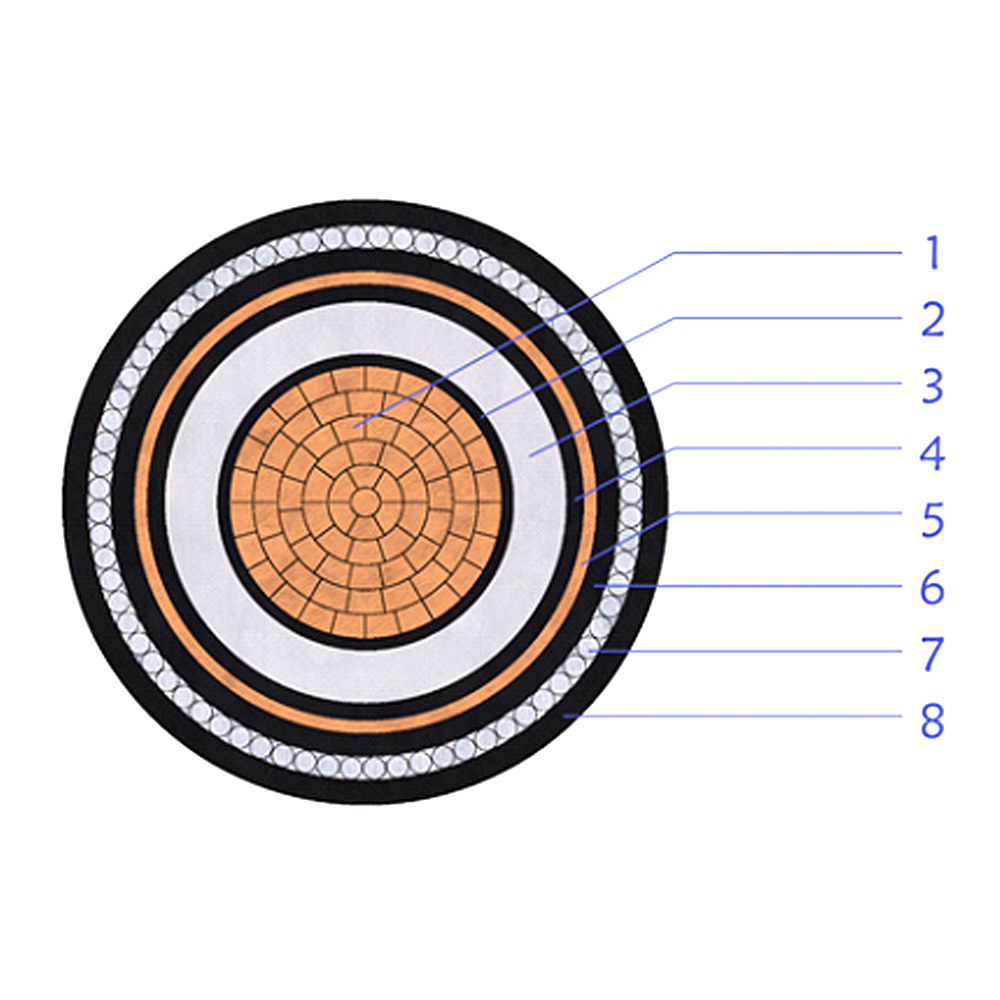

Conductor System
Plain annealed, Class 2 compacted copper conductor
Extruded semi-conductive conductor screen applied directly over the conductor
Insulation System
XLPE insulation compound
Extruded semi-conductive insulation screen for uniform electrical stress control
Screening Layer
Copper tape metallic screen
Sheathing and Armour
PVC inner sheath
Aluminium wire armour (AWA), other armour options available upon request
PVC outer sheath, Type ST2
