3.6/6(7.2)kV Multi-Core XLPE Insulated Copper Tape Screen Armored MV Power Cable (2–3 Cores)

Product Categories

  • 3.6/6(7.2)kV Multi-Core XLPE Insulated Copper Tape Screen Armored MV Power Cable (2–3 Cores)

MV Power Cables

3.6/6(7.2)kV Multi-Core XLPE Insulated Copper Tape Screen Armored MV Power Cable (2–3 Cores)

This 3.6/6(7.2)kV multi-core medium voltage power cable features copper conductors combined with XLPE insulation and copper tape metallic screening.
Designed for 2-core and 3-core configurations, the cable supports balanced power distribution in medium voltage networks while maintaining stable electrical behavior.
The armored structure, together with PVC inner and outer sheathing, provides mechanical reinforcement and contributes to consistent performance in medium voltage power transmission environments.

Contact UsWuxi Xinyu Cable Co., Ltd.
PREV：Multi-Core XLPE Insulated Copper Tape Screen Steel Wire Armored Power Cable
NEXT：3.6/6(7.2)kV Single-Core XLPE Insulated Copper Tape Screen Armored MV Power Cable

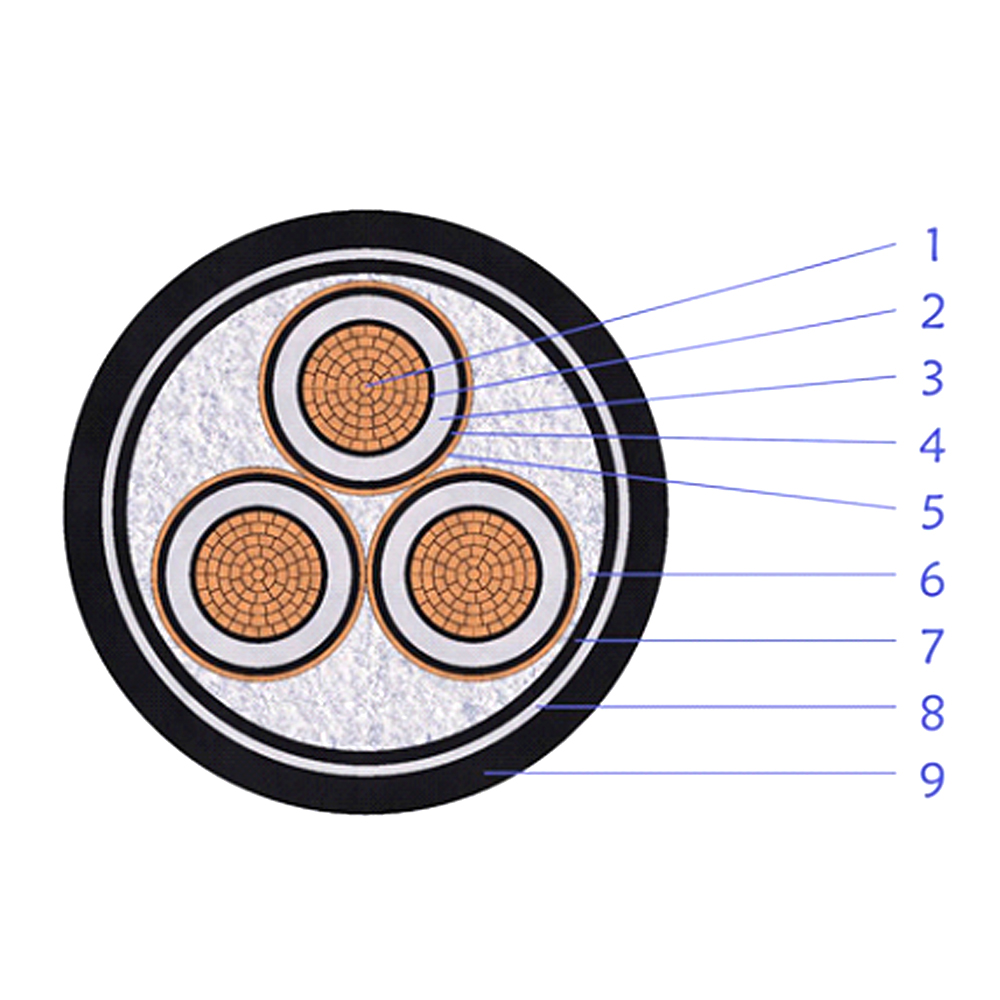

Conductor System
Plain annealed, Class 2 compacted copper conductors
Each conductor provided with an extruded semi-conductive conductor screen
Insulation System
XLPE insulation compound applied to each core
Extruded semi-conductive insulation screen for controlled electrical stress distribution
Screening Layer
Copper tape metallic screen
Sheathing and Armour
PVC inner sheath
Aluminium wire armour (AWA), alternative armour types available upon request
PVC outer sheath, Type ST2
