6/10(12)kV XLPE Insulated Unarmored Power Cable
This 6/10(12)kV XLPE insulated unarmored power cable is intended for medium voltage power distribution in locations where the cable is not exposed to significant mechanical impact.
The cable adopts a copper conductor with XLPE insulation and copper tape screening, delivering stable electrical performance while maintaining a simpler, lighter structure compared with armored power cables.
Both single-core and multi-core constructions are available, allowing the cable to be adapted to different system layouts and installation practices.

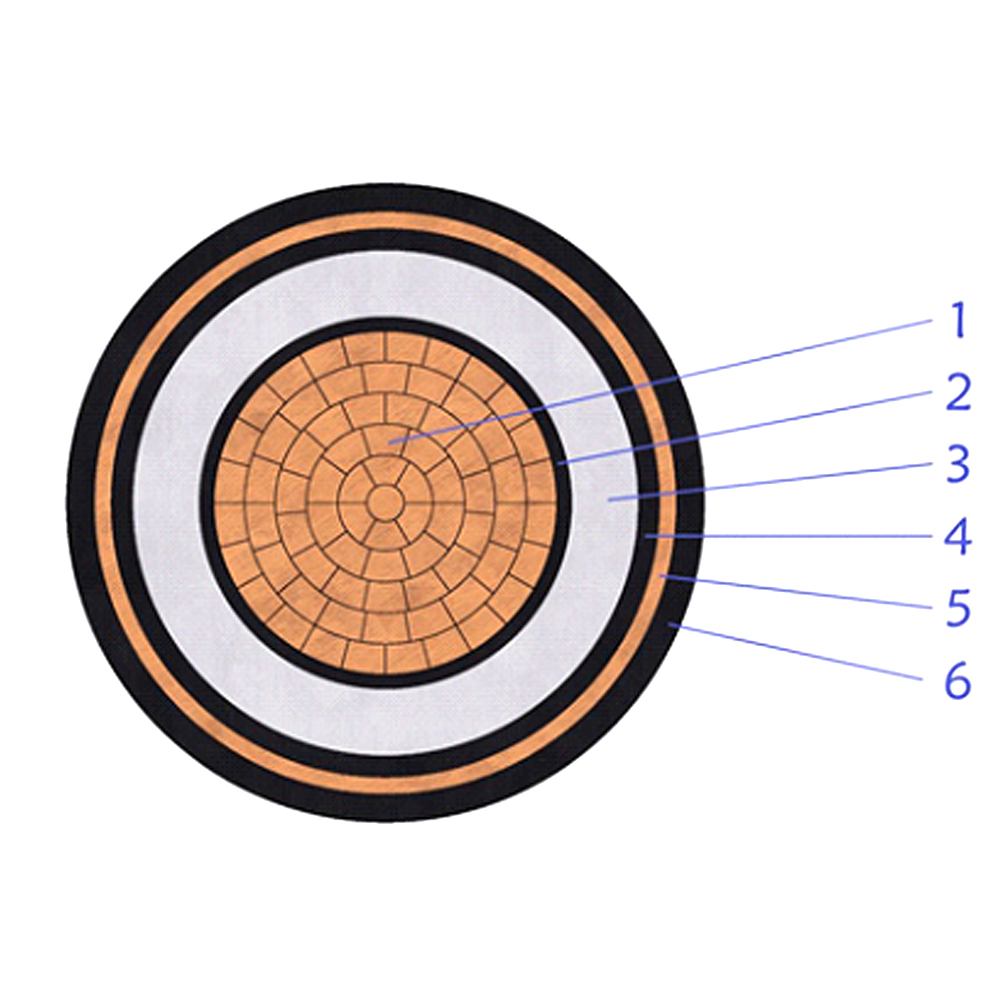

Conductor and Screening
The conductor is manufactured from Class 2 compacted copper using plain annealed material to support consistent electrical conductivity.
A semi-conductive conductor screen is extruded directly over the conductor surface to improve electrical field uniformity.
Insulation System
The conductor is insulated with cross-linked polyethylene (XLPE), designed to operate reliably under 6/10kV voltage conditions.
An extruded semi-conductive insulation screen is applied over the insulation layer to manage electrical stress within the cable.
Metallic Screen and Sheath
A copper tape metallic screen is applied over the insulated core, contributing to controlled electrical field distribution.
The cable is finished with a PVC outer sheath, Type ST2, providing environmental protection suitable for unarmored installations.
Standard outer sheath colour is black, with alternative colours available upon request.
Product Features
Unarmored structure suitable for indoor, ducted, or otherwise protected installations
Copper tape screening supporting stable medium voltage operation
XLPE insulation designed for long-term electrical performance
Lighter construction compared with armored medium voltage cables
Operating Voltage: 6/10(12)kV
Maximum Continuous Conductor Operating Temperature: 90℃
Maximum Short Circuit Conductor Temperature: 250℃
Test Voltage: 3.5Uo
